IP66 water-proof, Data-Logger, USB RS-232, Max/ Min/ Avg, Dew point

IP66 water-proof & dust-proof.

Data-Logging up to 32000 readings

USBhighspeeddownloading

Max/Min/Avg/Hold Functions.

Large LCD display with LED back-light. High accuracy and respond quickly

USB and RS-232 output

IP66,CE and RoHS approved

Measurement Range

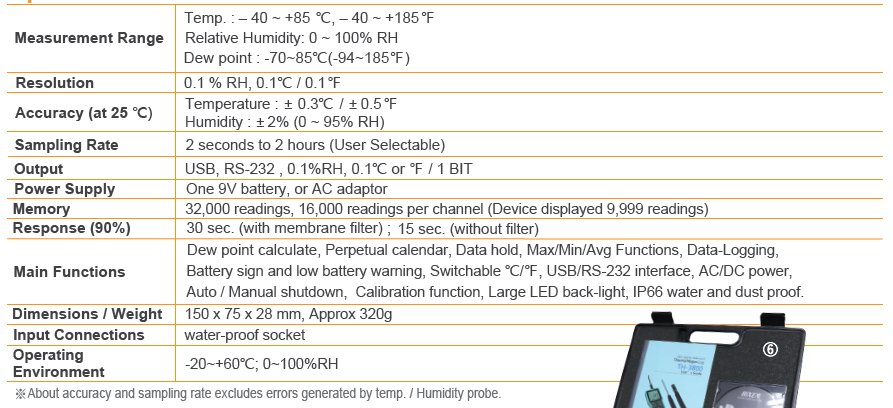

Specifications of TH-3800
Relative Humidity: 0 ~ 100% RH
Temp. : – 40 ~ +85 ℃, – 40 ~ +185℉
Resolution: 0.1 % RH, 0.1℃ / 0.1℉

Dew point : -70~85℃(-94~185℉)
Response (90%) 30 sec. (with membrane filter) ; 15 sec. (without filter)

Main Functions

Humidity : ± 2% (0 ~ 95% RH)
Temperature : ± 0.3℃ / ± 0.5℉ Accuracy (at 25 ℃)
Battery sign and low battery warning, Switchable ℃/℉, USB/RS-232 interface, AC/DC power,
Dew point calculate, Perpetual calendar, Data hold, Max/Min/Avg Functions, Data-Logging,
Sampling Rate 2 seconds to 2 hours (User Selectable)
Memory 32,000 readings, 16,000 readings per channel (Device displayed 9,999 readings)
Output USB, RS-232 , 0.1%RH, 0.1℃ or ℉ / 1 BIT
Dimensions / Weight:150 x 75 x 28 mm, Approx 320g
Input Connections water-proof socket
Operating
-20~+60℃; 0~100%RH

Power Supply One 9V battery, or AC adaptor
Auto / Manual shutdown, Calibration function, Large LED back-light, IP66 water and dust proof.

Package Includes:


Main unit plus several accesories as below:

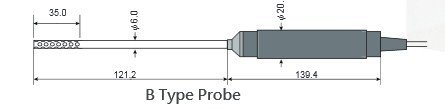

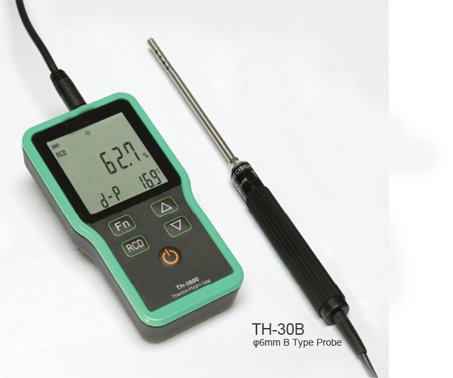

6mm B Type Temperature / Humidity probe

RS-232 Interface cable

USB computer interface cable

Plastic carrying case

AC Adaptor
